邊緣運算 AI 電腦
IBOX-601-TVI8

NVIDIA® Jetson Orin™ Edge AI Computer for Analog Camera Support

  • NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
  • 8 x TVI/AHD Cameras Support
  • 2 x Ethernet
  • The Front-Facing Interface Facilitates Installation
  • 9-60VDC Input with Built-in Smart Power Management

  • -25 ~65°C Operating with Fanless Design

Product Status: Sample Available
CE FCC E-Mark Wide-voltage Wide-temperature Fanless
線上詢價 Datasheet
IBOX-601-TVI8 Edge AI computer for existing TVI AHD analog camera systems

Upgrade Existing Analog Camera Systems with Edge AI

The IBOX-601-TVI8 provides a cost-effective path to Edge AI by bringing NVIDIA® Jetson Orin™ processing directly to existing analog camera systems. With native support for up to eight TVI/AHD cameras via BNC interfaces, it enables real-time multi-camera video analytics without requiring costly camera replacement. Powered by Jetson Orin NX 16GB or Orin Nano 8GB, the rugged fanless platform combines AI computing with 2.5GbE, CAN FD, serial, USB, and Digital I/O, helping system integrators accelerate AI deployment while extending the value of existing camera infrastructure.

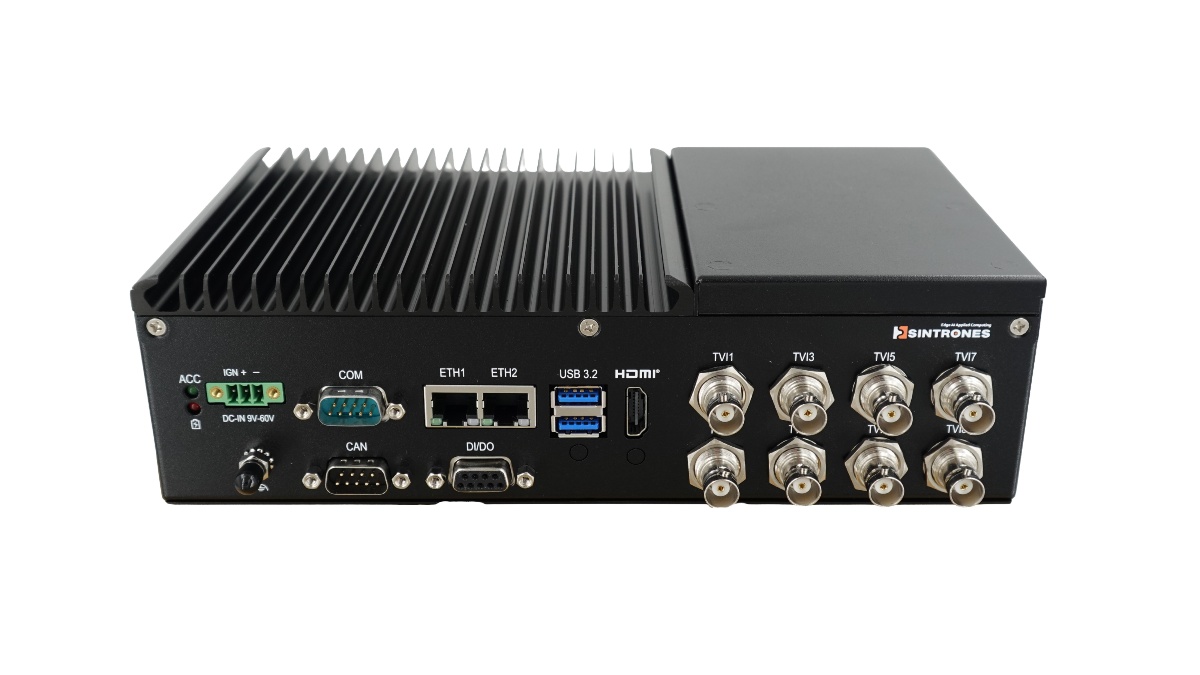

IBOX-601-TVI8 NVIDIA Jetson Orin Edge AI computer with 8-channel TVI AHD camera inputs
Edge AI video analytics using analog cameras for intelligent transportation and fleet monitoring

Real-Time AI Video Analytics for Transportation and Mobile Surveillance

Designed for intelligent transportation, fleet management, and mobile surveillance, the IBOX-601-TVI8 transforms existing TVI/AHD camera systems into intelligent edge platforms. Eight native analog camera inputs enable real-time object detection, event recognition, and video analytics directly at the edge. A 9–60VDC wide-range power input, ignition control, Smart Power Management, and CAN FD support reliable integration into buses and commercial vehicles, while MIL-STD-810H shock and vibration compliance helps maintain stable operation in demanding mobile environments.

Technical FAQ

Q1: Can the IBOX-601-TVI8 work with existing analog cameras?

A: Yes. The IBOX-601-TVI8 provides eight native BNC inputs for TVI/AHD analog cameras, allowing compatible existing camera infrastructure to be integrated with Edge AI processing without requiring a complete camera system replacement.

Q2: What TVI/AHD camera resolutions does the IBOX-601-TVI8 support?

A: The IBOX-601-TVI8 supports TVI/AHD camera inputs at 720p25, 720p30, 1080p25, and 1080p30, with up to eight analog cameras connected simultaneously through BNC interfaces.

Q3: Which NVIDIA Jetson Orin modules are supported?

A: The IBOX-601-TVI8 is available with NVIDIA® Jetson Orin™ NX 16GB or Jetson Orin Nano 8GB, providing scalable Edge AI computing for multi-camera video analytics, inference, object detection, and event recognition.

Q4: Is the IBOX-601-TVI8 suitable for in-vehicle applications?

A: Yes. The system features a 9–60VDC wide-range power input, ignition detection, Smart Power Management, CAN FD, and E-mark compliance. It is also tested to MIL-STD-810H standards for vibration and shock, making it suitable for buses, commercial vehicles, and other mobile deployments.

Q5: What wireless and storage expansion options does the IBOX-601-TVI8 provide?

A: The IBOX-601-TVI8 provides an M.2 Key B slot for WWAN with SIM support, an M.2 Key E slot for Wi-Fi/Bluetooth, a Mini PCIe slot for GNSS, and an M.2 Key M slot for NVMe SSD storage. This enables flexible configuration for connected transportation, fleet management, and remote edge applications.

Processing
