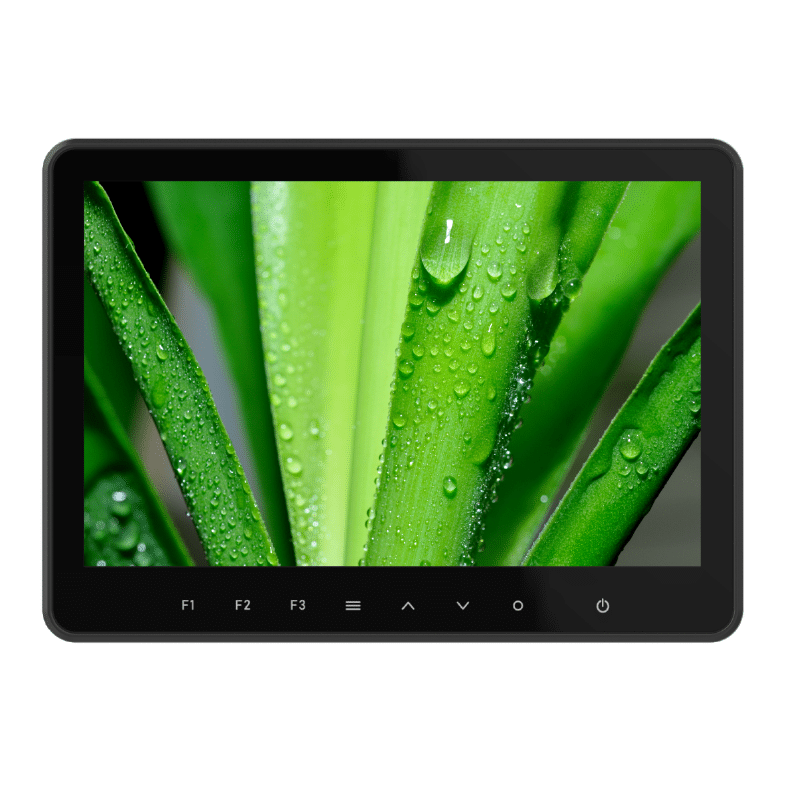

• Effortless One-Cable Connection
• 1280(H)×800(V) High Resolution
• High Brightness 1000 nits
• Secondary Video Input (HDMI)
• Projected Capacitive Multi-touch
• DC 9 – 48V Power Input
• Operating Temperature: -20°C ~ 60°C
• Vehicle Regulation E-Mark
10.1 inches / 16 : 10
1280 (H) × 800 (V) RGB
218.16 (H) × 136.80 (V) mm
89 / 89 / 89 / 89 Degree
1000 nits (typical)
1300:1 (typical)
LED
Projected Capacitive with Multi-touch

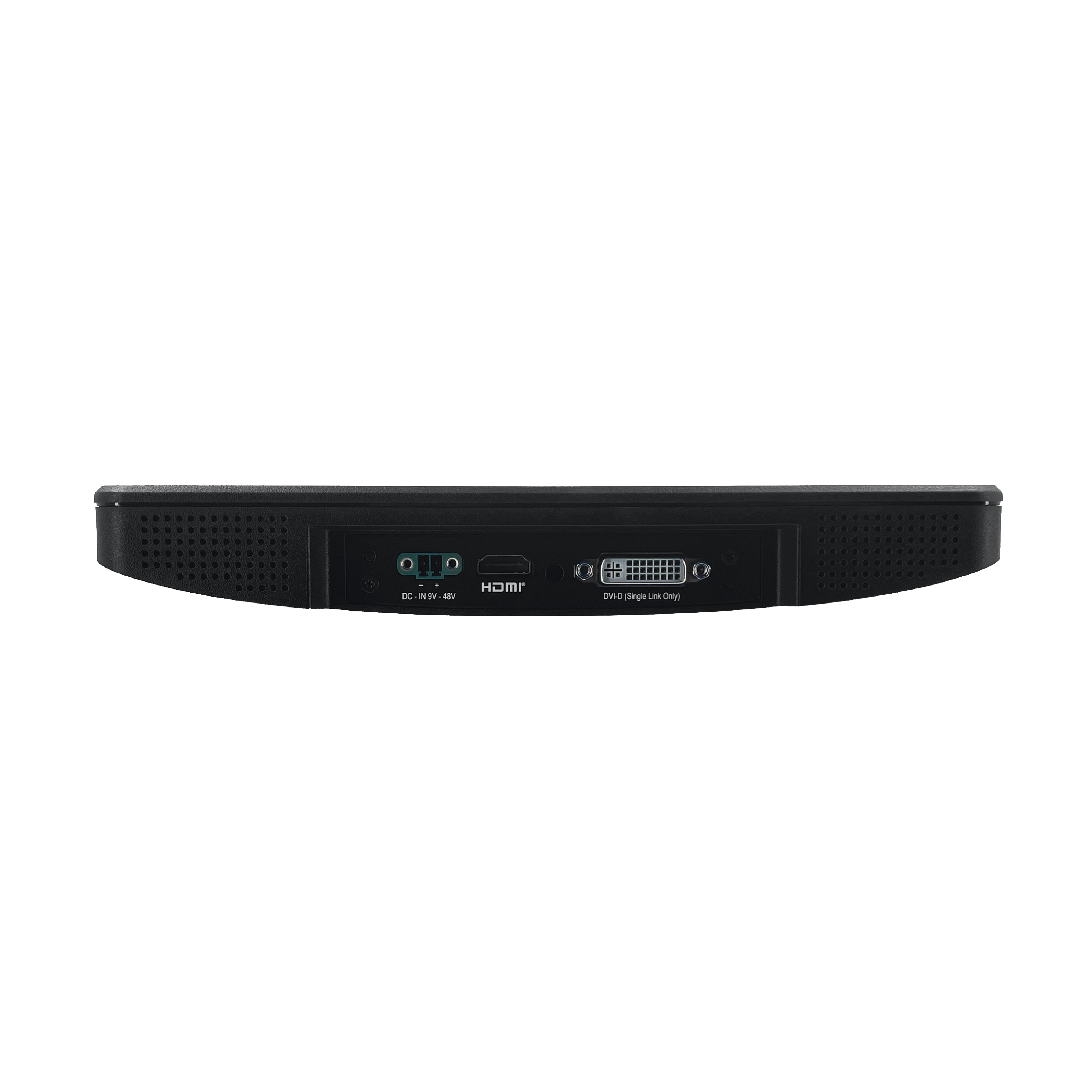

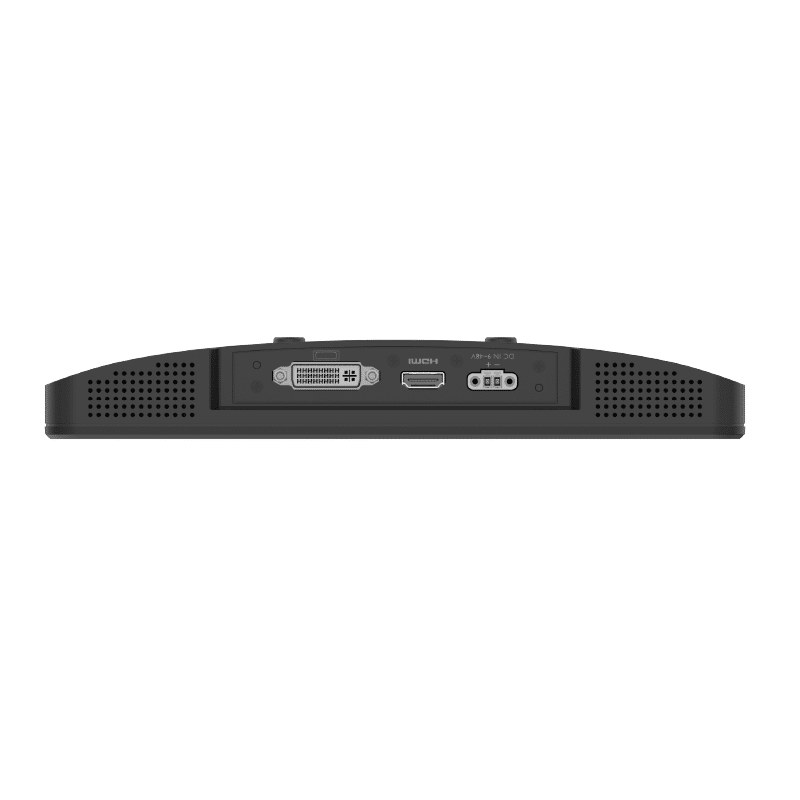

1 x DVI-D (single link with custom pin definition)
DC 9 – 48V
1 x HDMI
8 x Touch key
(OSD, 3 function keys, 1 power on/off)
2 x Built-in Digital MIC
Stereo Speaker with built-in Amplifier
247.84 (L) x 178.59 (W) x 36.36 (H) mm

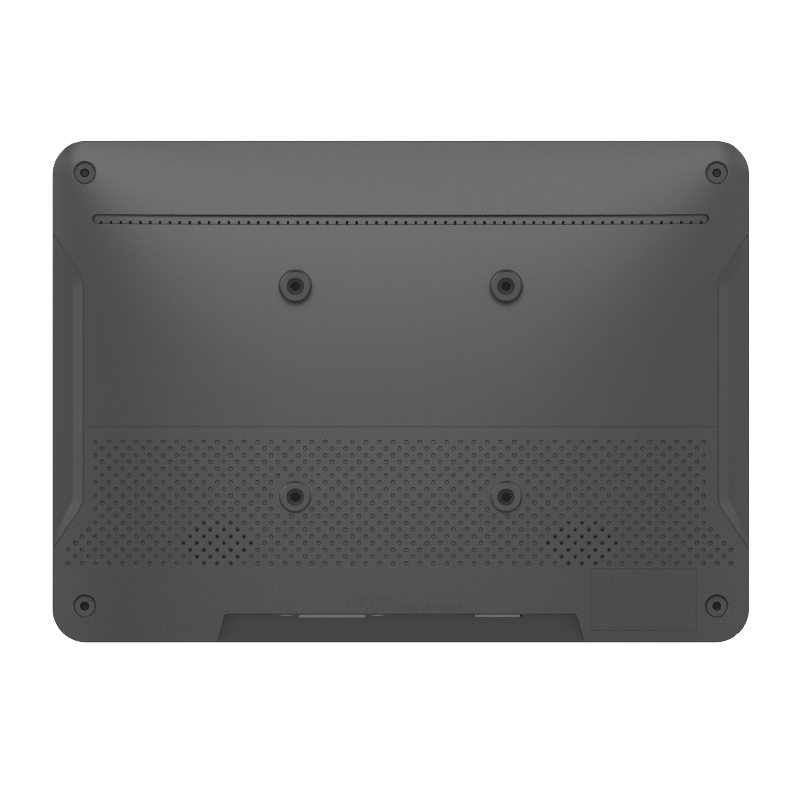

VESA MIS-D 75 mm
900g
(Front) IP65
(others) IP4X
DC 9 – 48V Power Input
(Power input via DVI or Terminal Block Connector)
-20°C ~ 60°C (-4°F ~ 140°F) with 0.6m/s airflow
-40°C ~ 80°C (-40°F ~ 176°F)
10% RH – 90% RH (non-condensing)
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms)
CE, FCC Class A, E-Mark
VDM-101HD

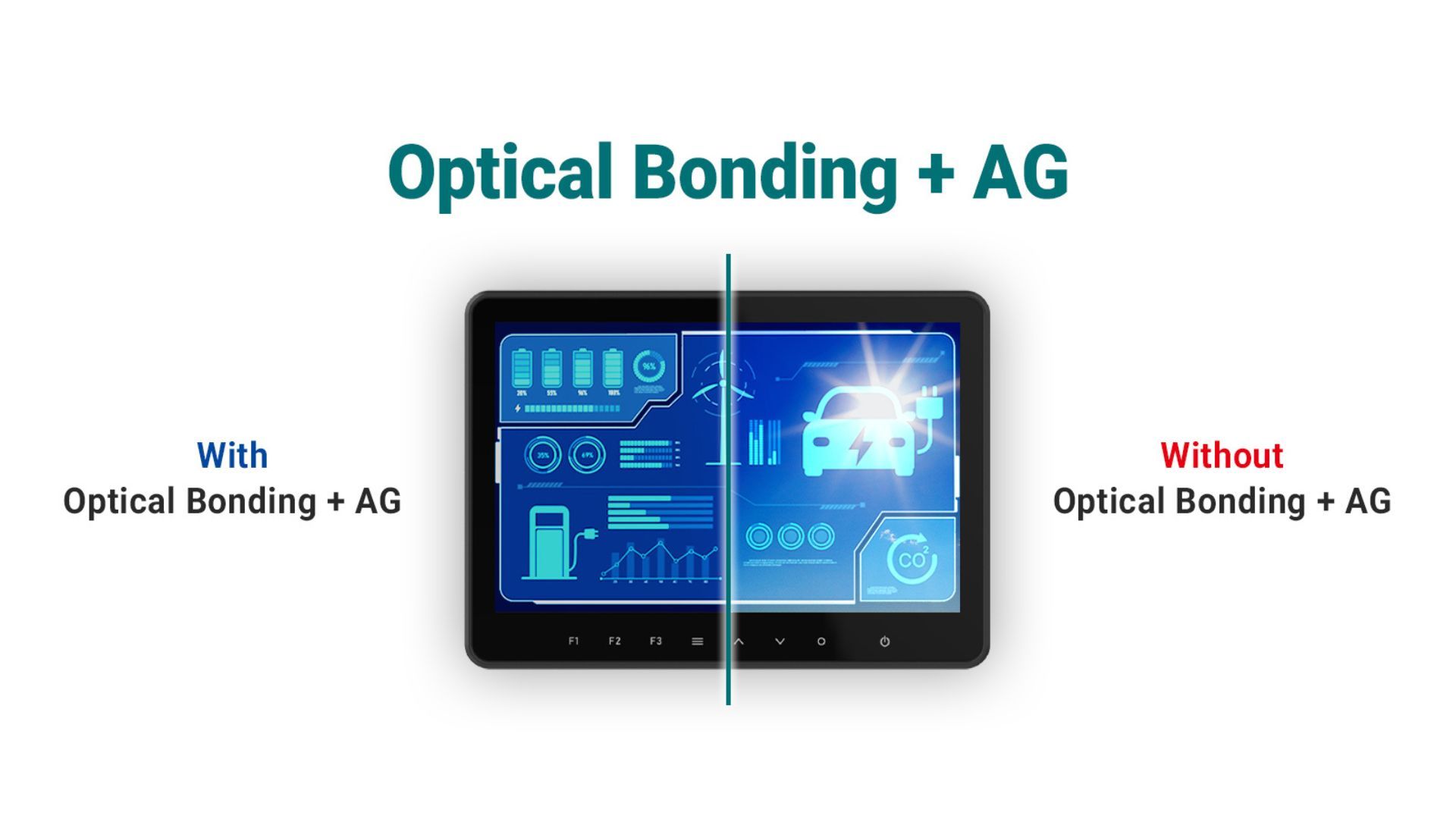

10.1″, 1280×800, 1000nits, PCT with AG & AF / 1 x HDMI / 1 x DVI / 3 x Function Key / OSD / DC 9-48V Display
Made in Taiwan
AC/DC 100-240V/12V 60W C14 power adapter
Self-locking strap (cable tie) for HDMI cable
