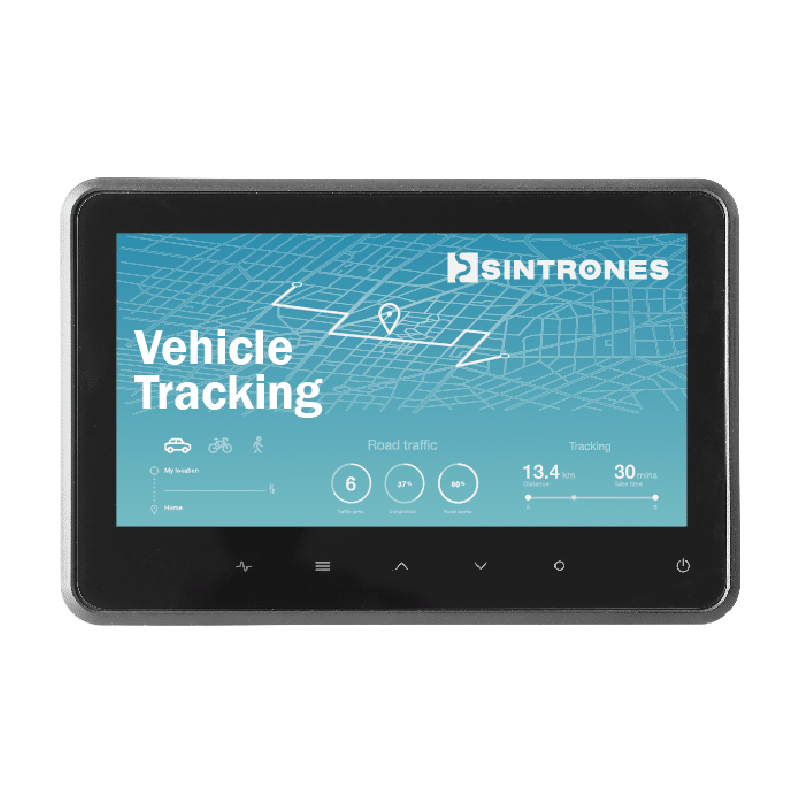

VDM-700HD

720P High Resolution / 560 nits / 1000:1 Contract Ratio / Projected Capacitive Touch / DC 9~48V Front Panel IP65 / In-Vehicle Monitor

Effortless One-Cable Connection

1280(H)×720(V) High Resolution

High Brightness 560 Nits

Secondary Video Input (HDMI®)

Projected Capacitive Multi-touch

SINTRONES Icons_CE

SINTRONES Icons_FCC

100SINTRONES Icons_Wide voltage

SINTRONES Icons_Wide temperature

IP66 Design (Waterproof and Dustproof)

線上詢價 Datasheet

LCD

Screen Size / Ratio: 7 inches / 16:9
Resolution: 1280 (H) × 720 (V) RGB
Active Area (mm): 156.48 (H) × 80.136 (V) mm
View Angle (H/V): 80 / 80 / 80 / 80 Degree
Brightness (nits): 560 nits (typical)
Contrast Ratio: 1000:1 (typical)Backlight Type
Backlight Type: LED

Touch

Type: Projected Capacitive with Multi-touch

I/O

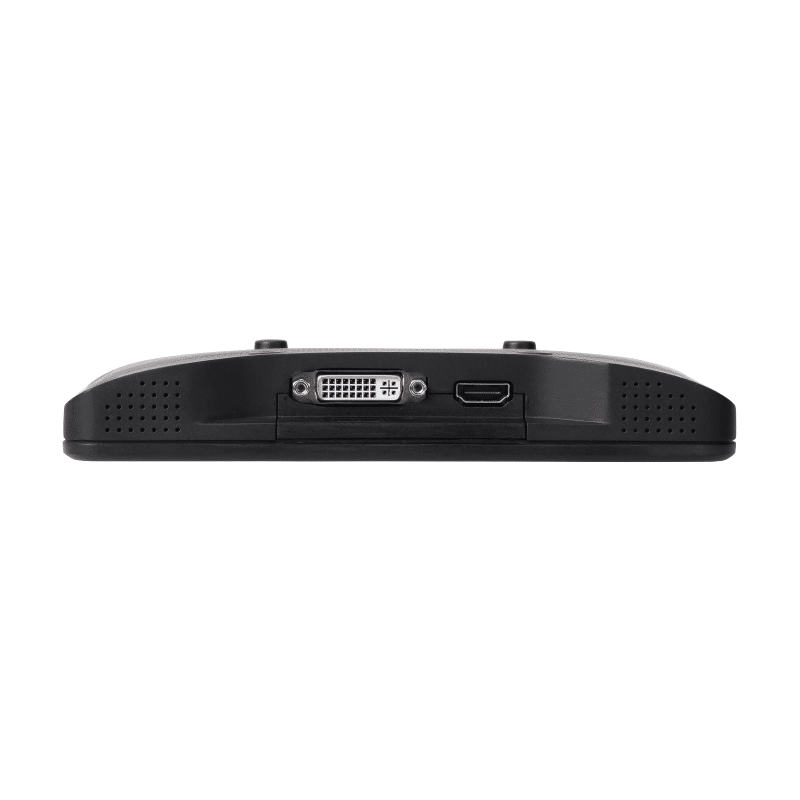

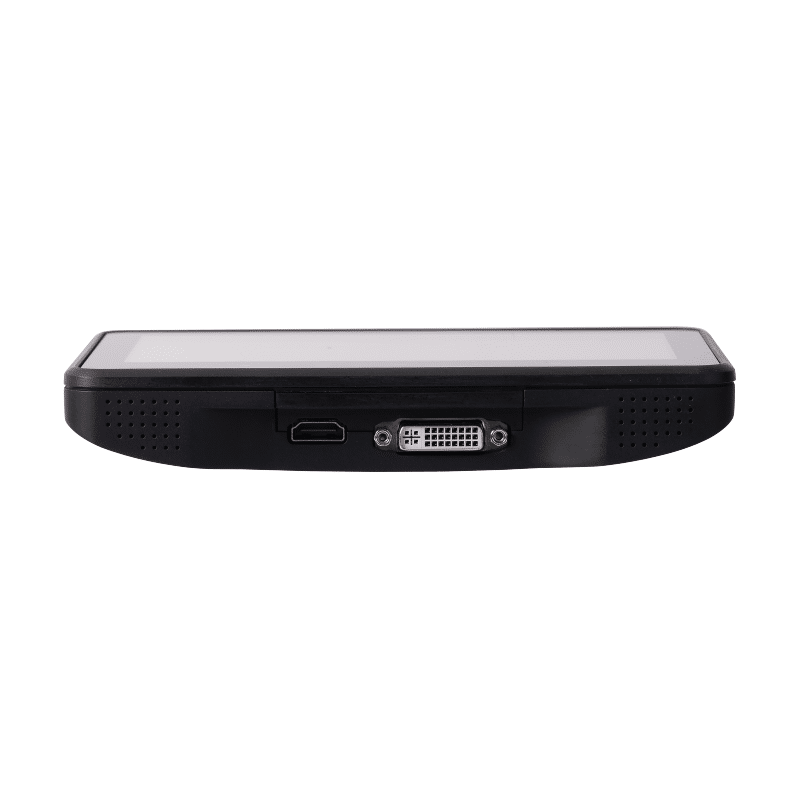

Multi-IO: 1 x DVI-D 29 pins Connector for DVI-D Single Link Video,
Touch (USB 2.0), Line in, MIC out, and DC 9~48V Power input
* SINTRONES custom pin definition for SINTRONES optional cable only
Secondary Video Input: 1 x HDMI®
Function Key: 6 x Touch Hotkeys

AUDIO

Microphone: 2 x Bulit-in Digital MIC
Speaker: Stereo Speaker with Built-in Amplifier

MECHANICAL

Dimension: 188.5 (L) x 124.2 (W) x 31.4 (H) mm
Weight: 510 g

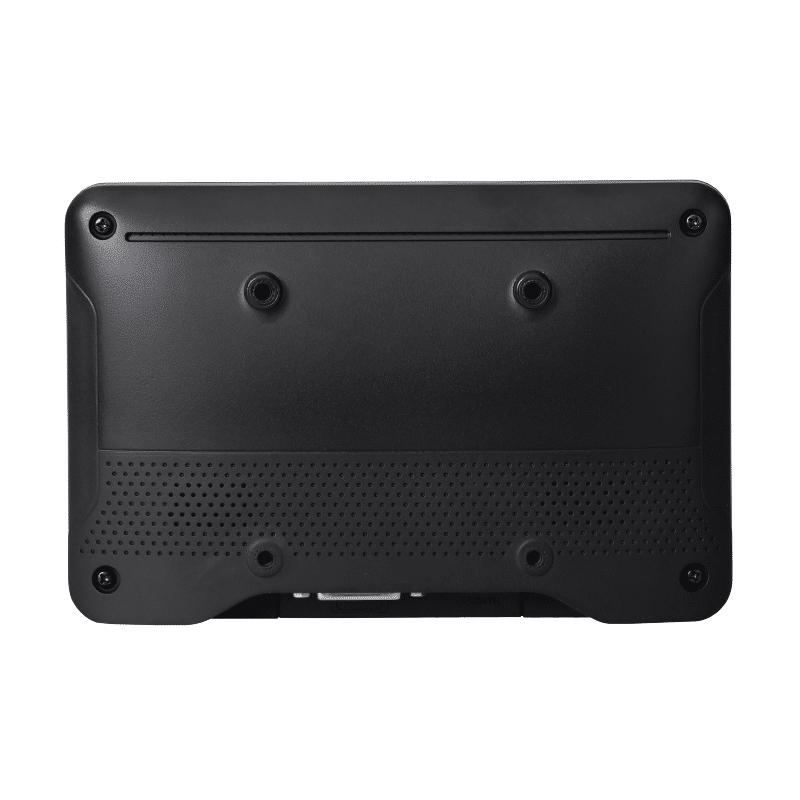

Mounting: VESA MIS-D 75 mm
IP Rating: (Front) IP65
(others) IP4X

POWER REQUIREMENT

Power Input: 9V – 48V DC Power Input

ENVIRONMENTAL

Operating Temp.: -20°C ~ 60°C with 0.6 m/s airflow
Storage Temp.: -40°C ~ 80°C
Relative Humidity: 10% RH – 90% RH (non-condensing)
Vibration: IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Shock: Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms)

CERTIFICATION

Certification: CE, FCC Class A, E-Mark
